Monix

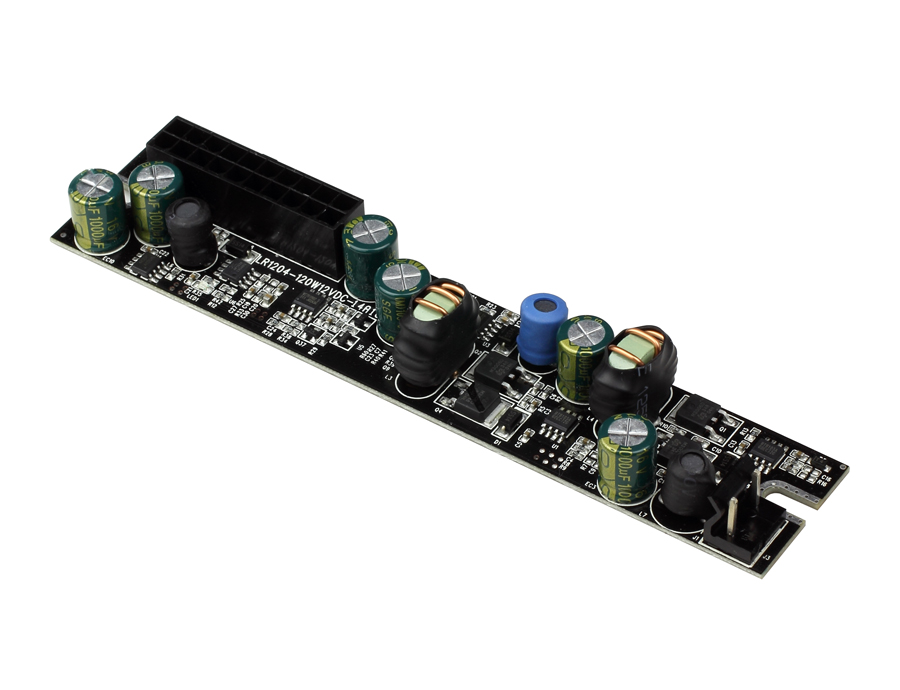

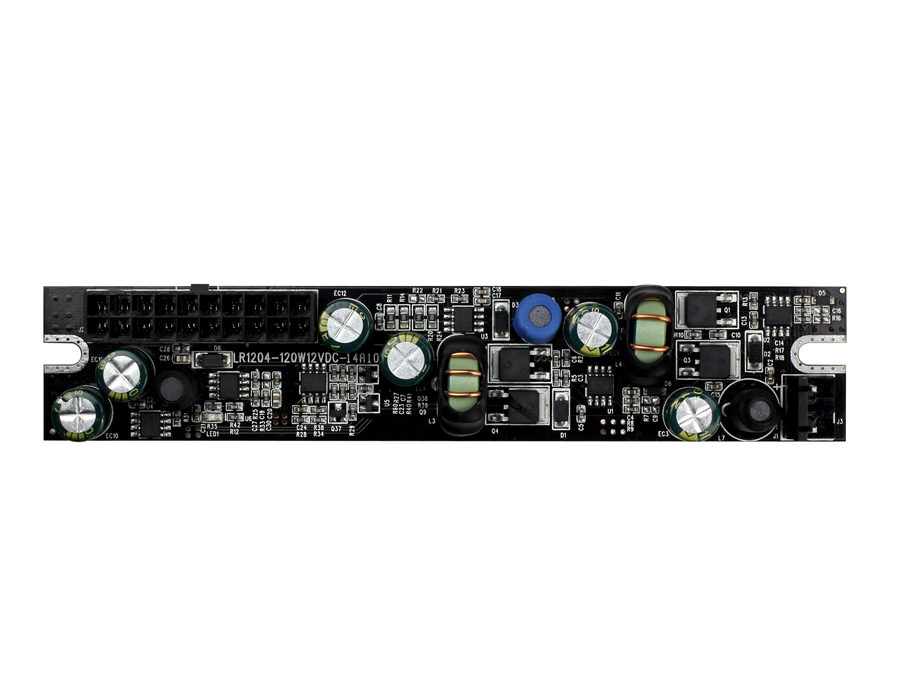

120W Mini ITX Internal Power Supply 20-pin Mini-ITX LR1204-120W12VDC

Model

LR1204-120W12VDC

Product code

LR1204-120W12VDC

$24.99 USD

Previously $29.99 USD

INPUT REQUIRED: INPUT VOLTAGE RANGE：11.4VDC—12.6VDC INCOMING CURRENT RANGE：12.0A Max @11.4VDC INPUT SURGING CURRENT：12.0Vmax@12VDC WORK EFFICIENCY：≥85% OCP： output shut down when output current reaches the peak point. Short-circuit protection：output shut down when short-circuit. Environment description: Working temperature/humidity 15℃ to 35℃ / 45%-75% Reposition temperature//humidity -40℃ to +70℃/ 10%-90% Atmospheric pressure 86Kpa—106Kpa Other parameters: Working frequency：Icbuilt-in oscillator（250-350）kHz@Vcc=12V Feedback reference voltage：0.8V±2%@12VDC

Shipping across the USA. Shipping and tax calculated at checkout.
